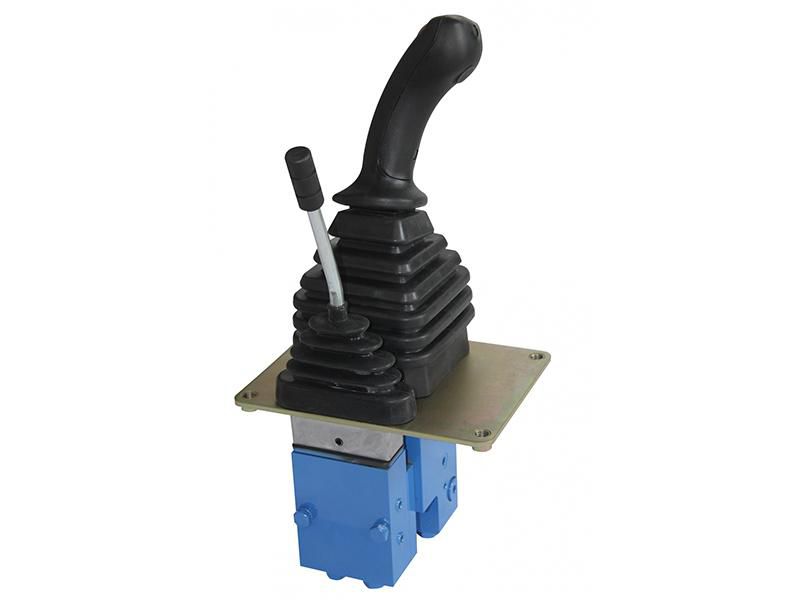

XDF3 Hydraulic Pilot Control Valve
- Pilot control valve with quick response provides accurate control of fluid flow.
- Ergonomic designed handle is optionally available with various switches or push buttons, offering good operation comfort at low operating force.
- Positioner can be connected to a solenoid valve with accurate positioning, unlock switch and auto reset.
- Pilot pressure valve is equipped with logic valve, e.g. floating control valve.
- Control valve is compact designed for simple piping installation and low pressure drop in hydraulic system.
- Outlet pressure (secondary pressure) changes with a varying flow rate for a better control of cylinder speed.
- Hydraulic valve can be manufactured with pilot valve with small lever, making it suitable for operation using fixtures.
- The resistant arm of the lever prevents operational failure effectively.
Applications
- Loader
- Bulldozer
- Agricultural machinery
- Material handling machinery
- Compactor
- Forestry machinery
- Container crane
- Drilling rig
Parameters
| Pilot pressure (MPa) | Maximum 2.5 |
| Control flow (L/min) | Maximum 16 |
| Return pressure (MPa) | Maximum 0.3 |
| Control pressure range (MPa) | 0.3-2.0 |
| Working voltage (V) | DC24 |
| Working current (mA) | 200-230 (at normal temperature, voltage 24V) |
| Operating temperature (℃) | -40-121 |
| Rated suction (N) | 300±20 |
| Hydraulic oil | Mineral oil (HL, HLP) in accordance with DIN 51 524 |
| Fluid temperature range (℃) | －20-80 |
| Viscosity range (mm2/s) | 10-380 |
| Fluid cleanliness | Not lower than NAS 1638 level 9 |
| Weight (kg) | 11 |
