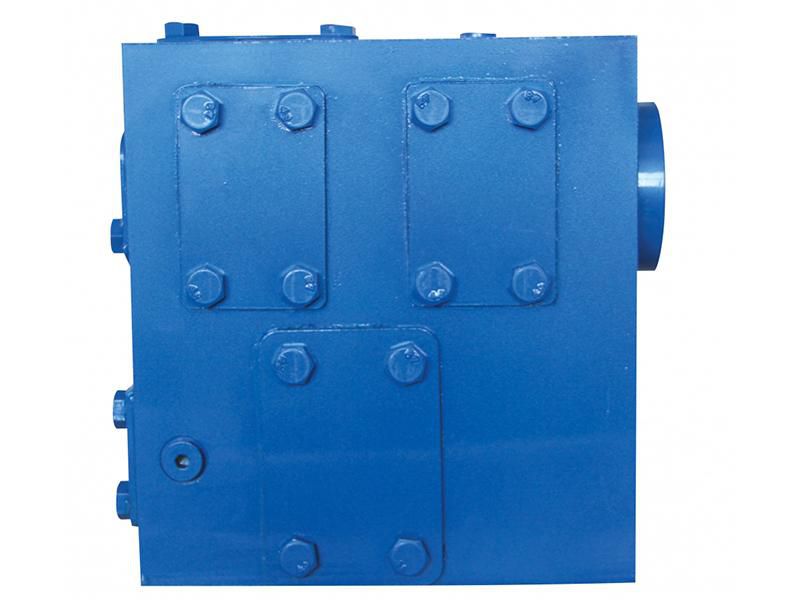

DXF50 Hydraulic Check Valve
- Hydraulic check valve is small and compact, ensuring high reliability at low cost.
- Check valve comes in a simple piping layout design.
- Hydraulic valve can allow high flow rates.
Applications
- Mining machinery
Parameters
| Return pressure (MPa) | Maximum: 1.2 |
| Rated flow (L/min) | 650 |
| Check valve opening pressure (MPa) | 1 |
| Hydraulic oil | Mineral oil (HL, HLP) in accordance with DIN 51 524 |
| Fluid temperature range (℃) | －20-80 |
| Viscosity range (mm2/s) | 10-380 |
| Fluid cleanliness | Not lower than GB/T 14039-93 level 19/16 or NAS 1638 level 10 |
| Weight(kg) | 35.5 |
