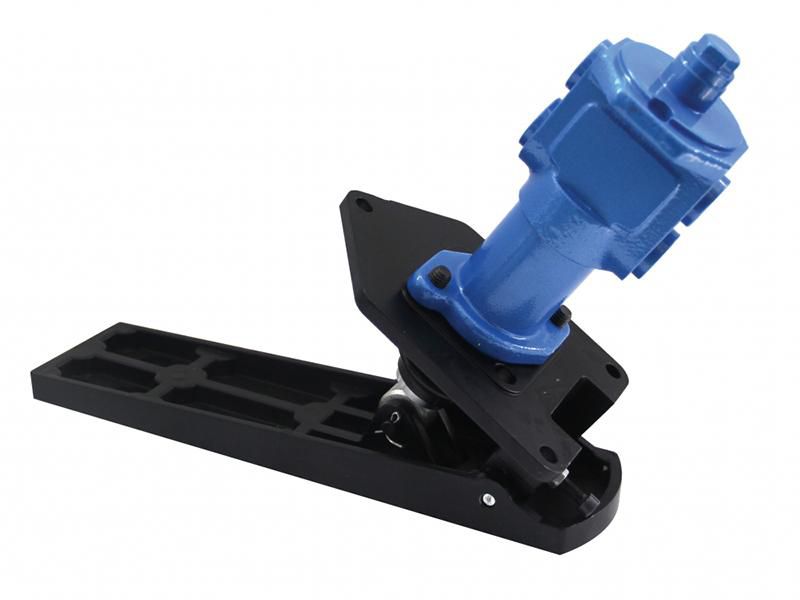

GLT06 Hydraulic Brake Valve
- Hydraulic brake valve with a small size is simple to install.
- Integrated max. pressure in braking circuit can be limited.
- Braking pressure is proportional to actuation force.
- Great braking effect with quick response, low hysteresis.
- Power brake valve has a ergonomic designed foot pedal, which ensures good operation comfort.
Applications
- Grader
- Wheel excavator
- Forklift
- Wheel loader
- Excavator/loader
- Hoisting machinery
- Other heavy machines
Parameters
| Rated flow (L/min) | 36 | |
| Inlet pressure (MPa) | Maximum 20 | |
| Return pressure (MPa) | Maximum 0.5 | |
| Braking pressure (MPa) | Maximum 12.5 | |
| Hydraulic oil | Mineral oil (HL, HLP) in accordance with DIN 51 524 | |
| Fluid temperature range (℃) | －20～100 | |
| Viscosity range (mm2/s) | 10～380 | |
| Fluid cleanliness | Not lower than GB/T 14039-2002 level 18/15 or NAS 1638 level 9 | |
| Weight (kg) | Single circuit:2.2 | Double circuit:3.2 |
