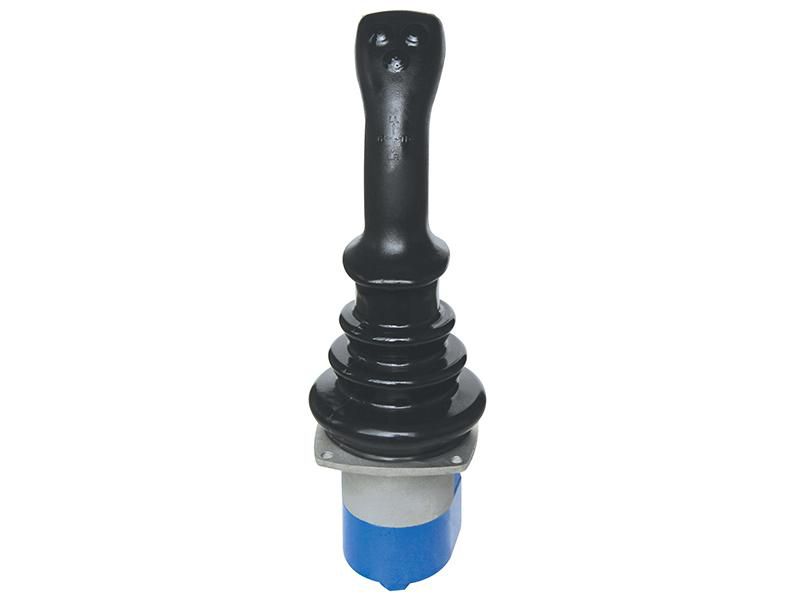

4TH6U06 Hydraulic Pilot Control Valve
- Pilot control valve is small and compact designed, simplifying installation.
- All ports are in parallel, thus simple to install.
- Single lever, dual axis control.
- Low actuating force, good operation comfort.
- Wide range of control curve characteristics, reliable proportional flow control.
- Control valve features low hysteresis and quick response to pressure changes.
- Hydraulic valve is dust proof and has high durability.
- Pressure characteristic curves can be customized to suit different types of directional control valves.
Applications
- Loader
- Bulldozer
- Hoisting machinery
- Agricultural machinery
- Material handling machinery
- Compactor
- Forestry machinery
- Container crane
- Drilling rig
Parameters
| Pilot pressure (MPa) | Maximum 5 |
| Control flow (L/min) | Maximum 16 |
| Return pressure (MPa) | Maximum 0.3 |
| Hydraulic oil | Mineral oil (HL, HLP) in accordance with DIN 51 524 |
| Fluid temperature range (℃) | －20℃-80℃ |
| Viscosity range (mm2/s) | 10-380 |
| Fluid cleanliness | Not lower than NAS 1638 level 9 |
| Weight (kg) | 3.6 |
