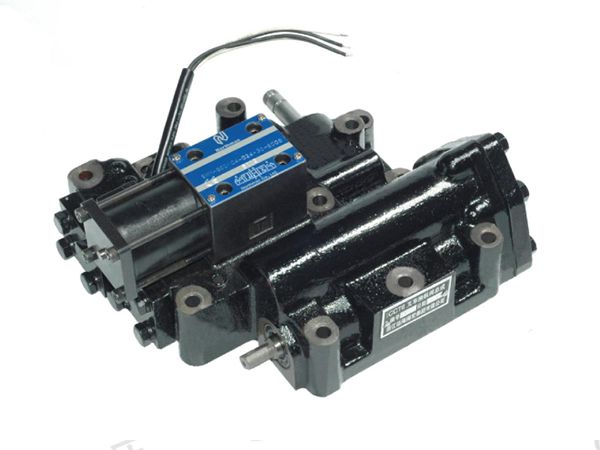

DCCT4/5/6 Forklift Electro-Hydraulic Variable Transmission Control Valve
- Compact structure and convenient installation. Each working port is connected by thread.
- Electro-hydraulic control reduces the fatigue strength of operator.
- The normal back-up lamp switch ensures warning and safety.
- Excellent inching unloading performance
Applications
Forklift electro-hydraulic variable transmission control valve is suitable for the variable transmission system of construction machinery, such as forklifts, towing vehicle, etc.
Parameters
| General | |
| Structure | Threaded connection |
| Control | Electro-hydraulic or manual control |
| Installation position | Arbitrarily |
| Hydraulic | |
| Nominal pressure | 25bar |
| Nominal flow rate | 25L/min |
| Setting pressure of constant pressure valve | 11~15bar |
| Operating force of spool | Max.120N |
| Rated voltage UR | DC 12 or 24V |
| Rated current IR | Max. 1.2A (under the rated voltage, 25℃) |
| Fluid temperature range | -20~+100℃ |
| Viscosity range | 10~380m²/s |
| Permissible degree of contamination | -/19/16(IS04406:1999) |
| Machinery | |
| Weight | DCCT4: 9.8kg DCCT5: 12.3kg DCCT6:19kg |
| Using guidelines | |
| Recommended fixing | At least 3 locations |
| Flatness of the mounting surface | 0.5mm |

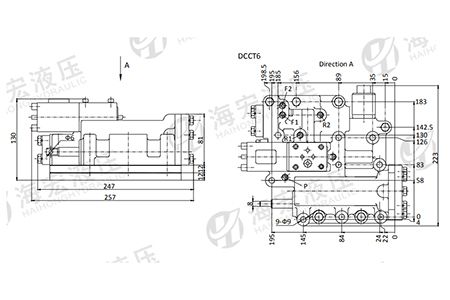

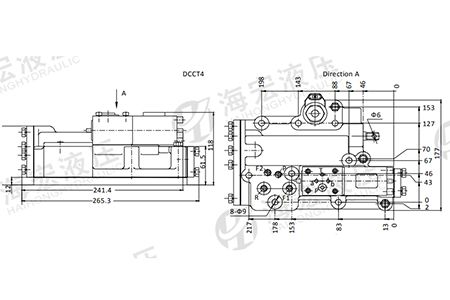

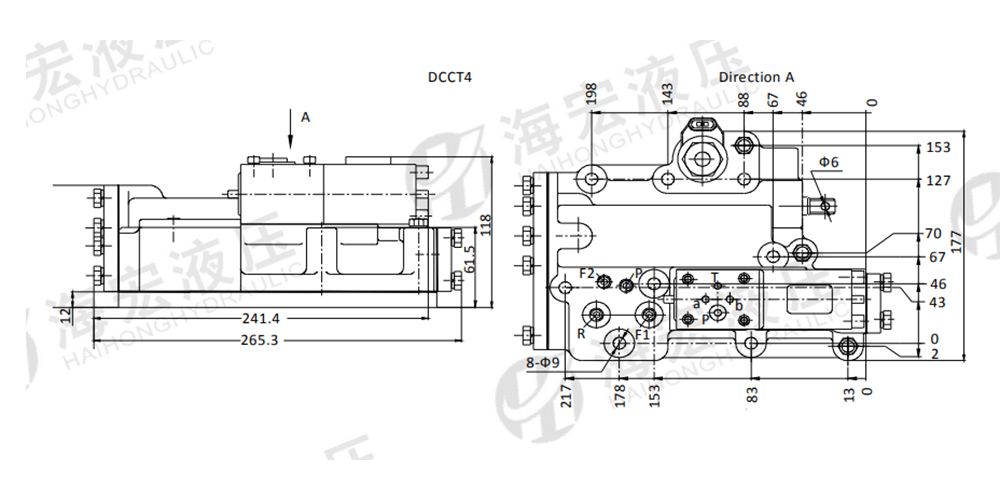

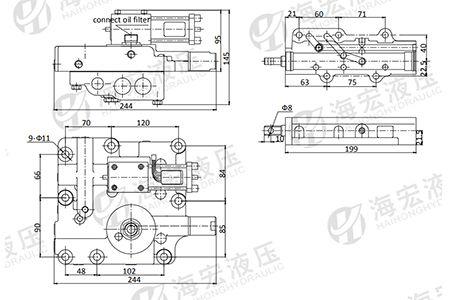

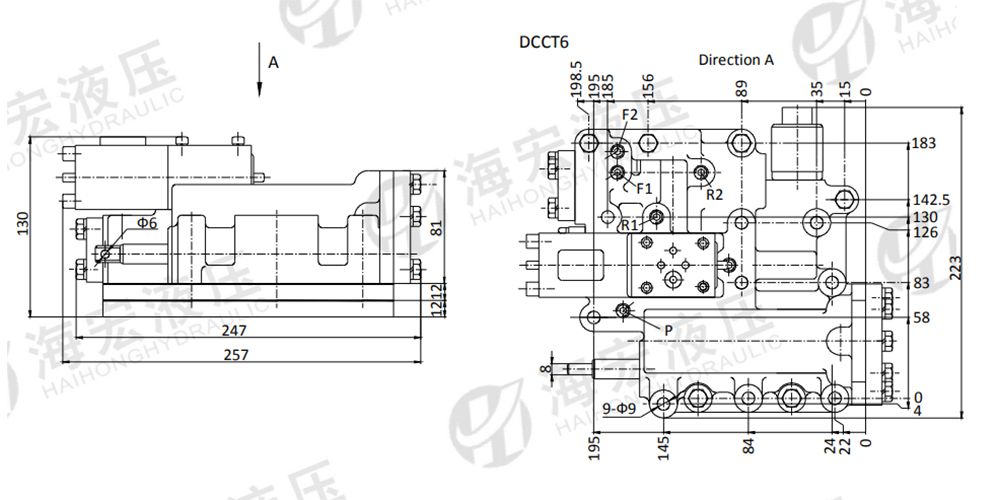

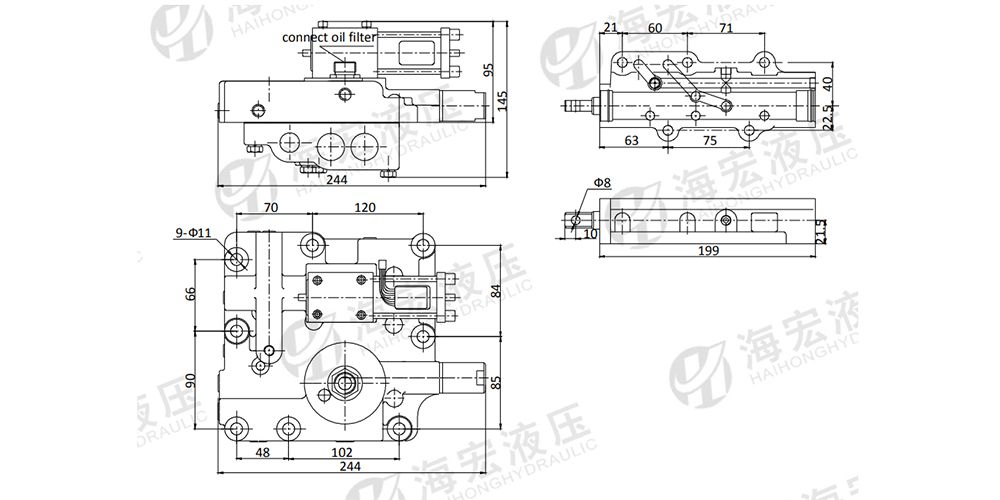

Dimensional Drawing
