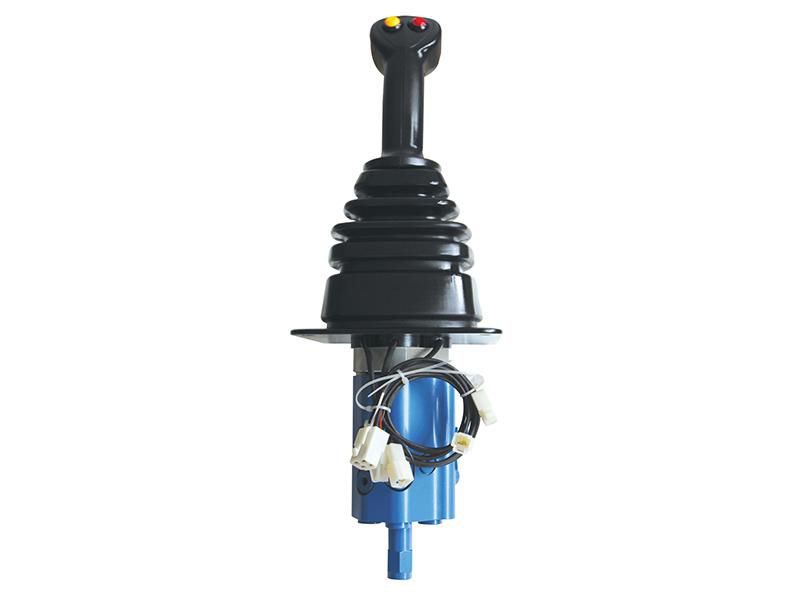

CRV Hydraulic Pilot Control Valve
- Compact designed pilot control valve is integrated with logic valve.
- Ergonomic designed handle is available with various switches or push buttons, offering good operation comfort at low operating force.
- Positioner can be connected to a solenoid valve with accurate positioning.
- Wide range of control curve characteristics, reliable proportional flow control.
- The resistant arm of the lever prevents operational failure effectively.
- All ports are in parallel, thus simple to install.
- Pressure characteristic curves can be customized to suit different types of directional control valves.
Applications
- Loader
- Bulldozer
- Hoisting machinery
- Agricultural machinery
- Material handling machinery
- Compactor
- Forestry machinery
- Container crane
- Drilling rig
Parameters
| Pilot pressure (MPa) | Maximum 5 |
| Control flow (L/min) | Maximum 16 |
| Return pressure (MPa) | Maximum 0.3 |
| Control pressure range (MPa) | 0.4-1.9 |
| Working voltage (V) | DC24 |
| Working current (mA) | 200-230 (at normal temperature, voltage 24V) |
| Operating temperature (℃) | -40-121 |
