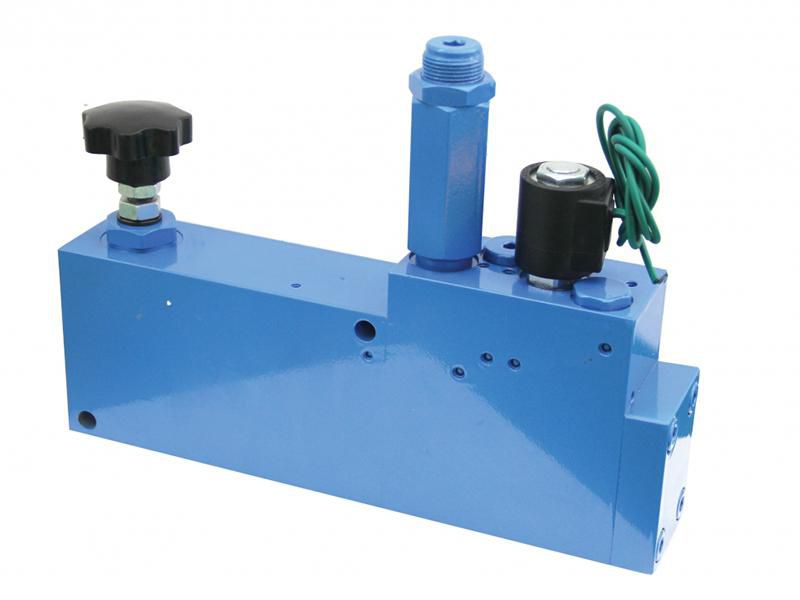

PSC Crushing Hammer Hydraulic Valve
- Crushing hammer hydraulic valve has compact structure and high reliability.
- Easy piping layout design simplifies the installation and maintenance.
- Hydraulic valve is highly integrated.
- Control valve features quick response and strong power.
- Valve module provides desired flow rates regardless of load pressure.
- No pollution caused, low noise created.
Applications
- Excavator/loader
- Mining machinery
Parameters
| Rated pressure (MPa) | 20 |
| Rated flow (L/min) | 160 |
| Solenoid valve rated voltage | DC24V |
| Solenoid valve rated current | 830mA |
| Solenoid valve insulation grade | H (GB11021-89) |
| Hydraulic oil | Mineral oil (HL, HLP) in accordance with DIN 51 524 |
| Fluid temperature range (℃) | －20℃-100℃ |
| Viscosity range (mm2/s) | 10-380 |
| Fluid cleanliness | Not lower than GB/T 14039-93 level 19/16 or NAS 1638 level 10 |
| Weight(kg) | 9.5 |
