ACV-L25F-00A Dual Accumulator Charging Valve
Applications
The dual accumulator charging valves are applied to the forklifts (large tonnage), agricultural machines, loaders, municipal vehicles, forestry machines, mine machines and other machines.
Parameters
| Rated flow | 120L/min |
| Liquid filling flow | 9L/min |
| Working pressure in accumulator circuit | 20MPa |
| Viscosity range | 10-380 mm²/s |
| Oil temperature range | -20℃--100℃ |
| Oil cleanliness | No less than Level GB/T 14039-2002 19/16 or Level NAS 1638 10 |
| Mass | 4.8Kg |

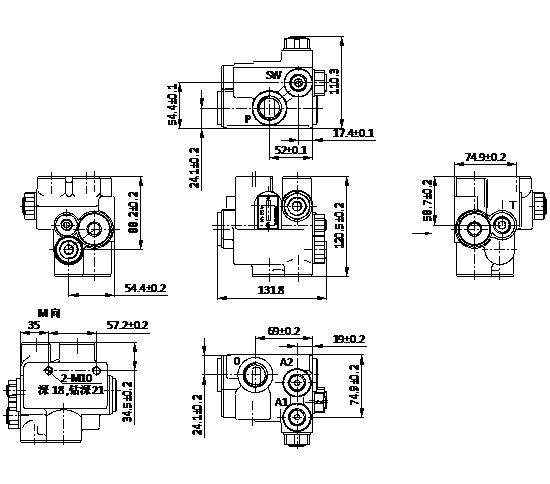

Outside view
