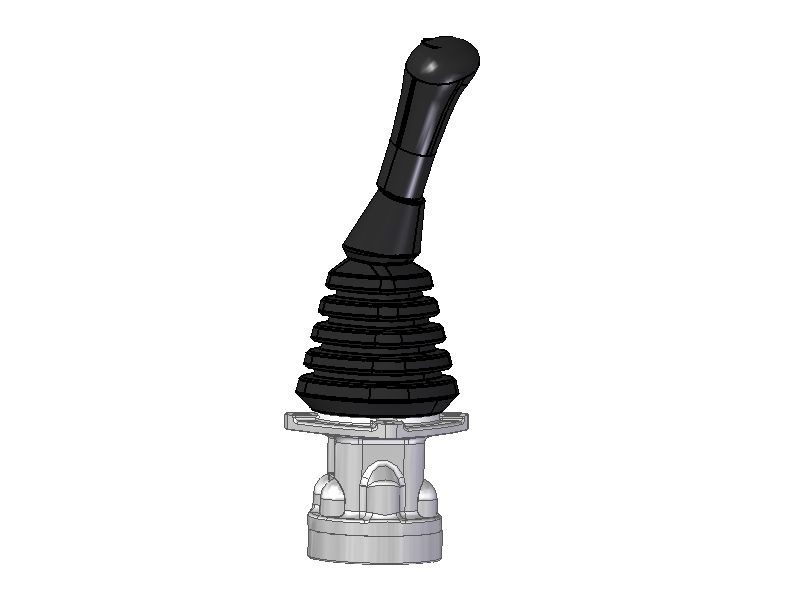

4TH08 Hydraulic Pilot Control Valve
- All connection ports are on the component's surface, simplifying installation and saving time
- Engineered to require minimal operational force, which enhances comfort and reduces fatigue during prolonged use
- Hydraulic pilot control valves stand out by their rapid response and high sensitivity to control inputs, ensuring precise operation
- Customization of the pressure characteristics curve is available to meet the specific demands of various multi-way control valve systems, providing flexibility in application
- The control valve design includes configurable options for left or right-hand operation, accommodating user preferences and setup requirements
Applications
- Excavator
- Wheel loaders
- Agricultural machinery
Parameters
| Pilot pressure (MPa) | Maximum 7 |
| Control flow (L/min) | Maximum 20 |
| Hydraulic oil | Mineral oil (HL, HLP) in accordance with DIN 51 524 |
| Fluid temperature range (℃) | －20～90℃ |
| Viscosity range (mm2/s) | 10～380 |
| Fluid cleanliness | Not lower than GB/T 14039-93 level 19/16 or NAS 1638 level 10 |
| Weight (kg) | 2.65 |

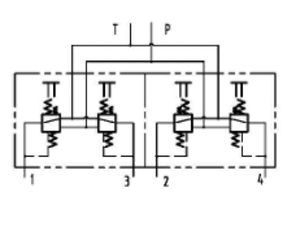

Hydraulic System Schematic Diagram

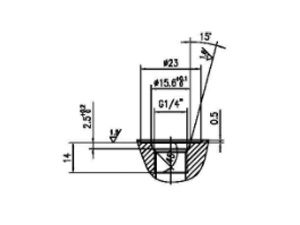

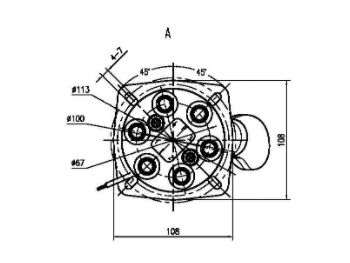

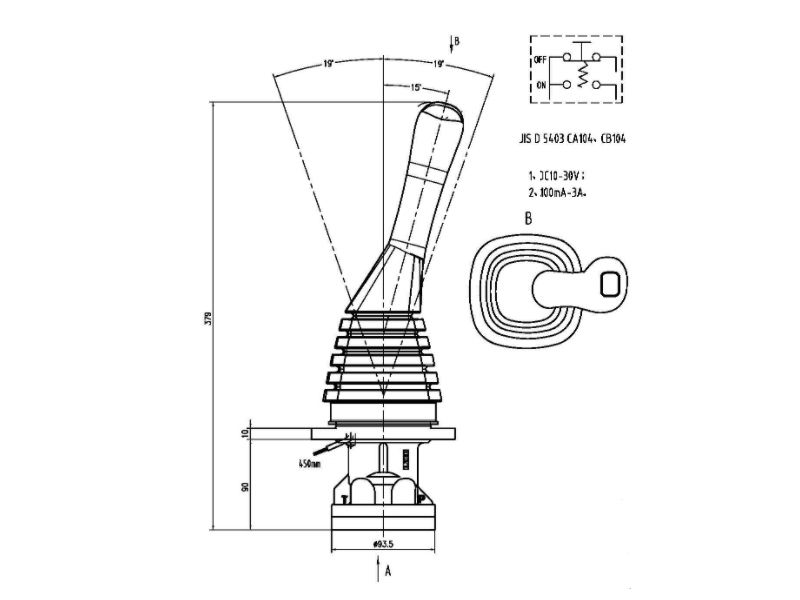

Installation Connection Dimension
