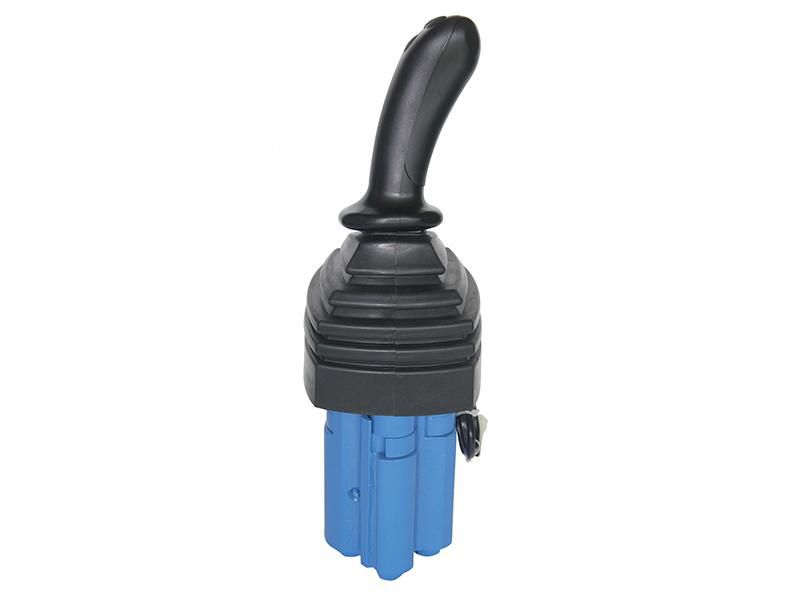

4THF5 Hydraulic Pilot Control Valve
- Pilot control valve is small and compact designed, simple to install.
- Pilot operated valve features accurate control and quick response.
- Ergonomic handle available with various switches or push buttons, offering good operation comfort at low operating force.
- Positioner can be connected to a solenoid valve with accurate positioning, unlock switch and auto reset.
- Outlet pressure (secondary pressure) changes with a varying flow rate for a better control of cylinder speed.
- The resistant arm of the lever prevents operational failure effectively.
- All ports are in parallel for a simple piping installation.
Applications
- Loader
- Bulldozer
- Agricultural machinery
- Material handling machinery
- Compactor
- Forestry machinery
- Container crane
- Drilling rig
Parameters
| Pilot pressure (MPa) | Maximum 5 |
| Control flow (L/min) | Maximum 16 |
| Return pressure (MPa) | Maximum 0.3 |
| Control pressure range (MPa) | 0.5-1.95 |
| Working voltage (V) | DC24 |
| Working current (mA) | 200-230 (at normal temperature, voltage 24V) |
| Operating temperature (℃) | -40-121 |
