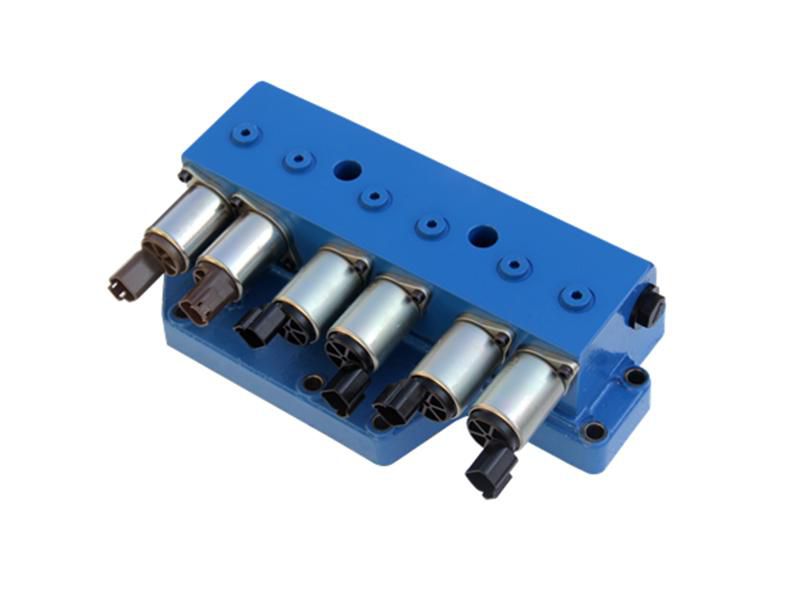

PT220.1 Transmission Control Valve
- Proportional valve brings desired pressure characteristic curve based on clutch parameters.
- Automatic transmission offers 4x4 or 6x6 gear shift.
- Transmission control valve is optionally available with proportional valve or solenoid valve according to usage.
Applications
- Tractor gearbox
- Construction machinery gearbox
Parameters
| Rated pressure (MPa) | 3 |
| Rated flow (L/min) | 36 |
| Solenoid valve working voltage | 12VCD±15% |
| 24VCD±15% | |
| Hydraulic fluid | Mineral oil (HL, HLP) in accordance with DIN 51 524 |
| Fluid temperature range (℃) | -20-100 |
| Viscosity range (mm2/s) | 10-380 |
| Fluid cleanliness | Not lower than GB/T 14039-93 level 19/16 or NAS 1638 level 10 |
| Weight (kg) | 13.5 |
