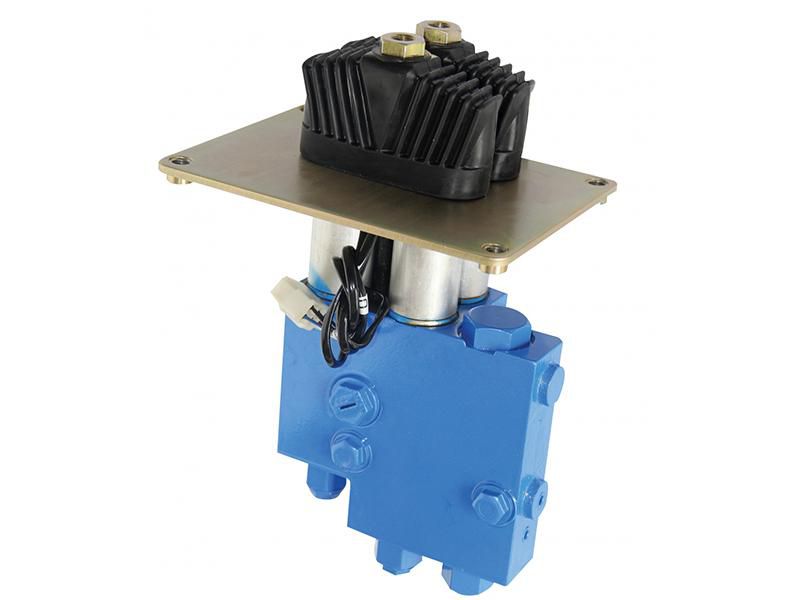

DJS Hydraulic Pilot Control Valve
- Pilot control valve features accurate control and fast response.
- Low actuation force, high operation comfort.
- Control valve is equipped with logic valve, e.g. providing floating control.
- Hydraulic valve has a compact structure to simplify piping installation and reduce pressure loss in hydraulic system.
- Positioner can be connected to a solenoid valve with accurate positioning, unlock switch and auto reset.
- Outlet pressure (secondary pressure) changes with a varying flow rate for a better control of cylinder speed.
- Pilot control valve DJS2 is a monoblock pilot operated valve with double levers. Pilot control valve DJS2 is a sectional pilot operated valve with multiple optional levers.
- Pilot control valve DJS can be solenoid operated or mechanically operated.
Applications
- Wheel loader
- Bulldozer
- Hoisting machinery
- Agricultural machinery
- Material handling machinery
- Compactor
- Forestry machinery
- Container crane
- Drilling rig
Parameters
| Pilot pressure (MPa) | Maximum 5 |
| Control flow (L/min) | Maximum 16 |
| Return pressure (MPa) | Maximum 0.3 |
| Control pressure range (MPa) | Rotating bucket slice: 0.5-2.5 Boom slice：0.5-2.0 |
| Working voltage (V) | DC24 |
| Working current (mA) | 200-230 (at normal temperature, voltage 24V) |
| Operating temperature (℃) | -40-120 |
| Rated suction (N) | 300±20 |
| Hydraulic oil | Mineral oil (HL, HLP) in accordance with DIN 51 524 |
| Fluid temperature range (℃) | －20-80 |
| Viscosity range (mm2/s) | 10-380 |
| Fluid cleanliness | Not lower than GB/T 14039-2002 level 19/16 or NAS 1638 level 10 |
| Weight (Kg) | DJS2:9.5 DJS3:19.5 |
