    Lift Platform Control Valve
    Request a Quote

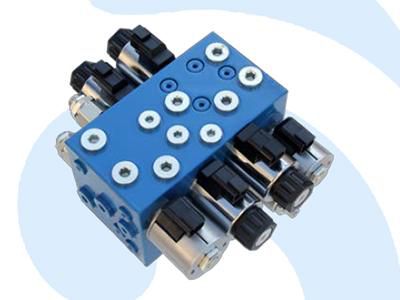

    HCV10 Lift Platform Control Valve

    • Lift platform control valve contains an accumulator to absorb road shocks while driving, thus ensuring smooth and safe drive.
    • Motor valve is equipped with back pressure regulator to dump excess pressure for smooth driving.
    • Charge valve can be integrated with control valve to supply oil in order to avoid noises caused by cavitation.
    • 3-way control valve is equipped with solenoid valve, featuring simple structure and high reliability.
    • Spool functions can be customized according to usage.
    • All ports are designed in parallel for simple installation.
    Applications
    • Scissor lift platform
    • Self-propelled device
    Parameters
    Nominal pressure (MPa) 25
    Rated flow (L/min) 16
    Maximum flow (L/min) 22
    Solenoid valve working voltage 24VCD±15%
    Steering flow range (L/min) 2.8-4.5
    Hydraulic oil Mineral oil (HL, HLP) in accordance with DIN 51 524
    Fluid temperature range (℃) -20-100
    Viscosity range (mm2/s) 10-380
    Fluid cleanliness Not lower than GB/T 14039-93 level 19/16 or NAS 1638 level 10
    Weight (kg) 15.5
