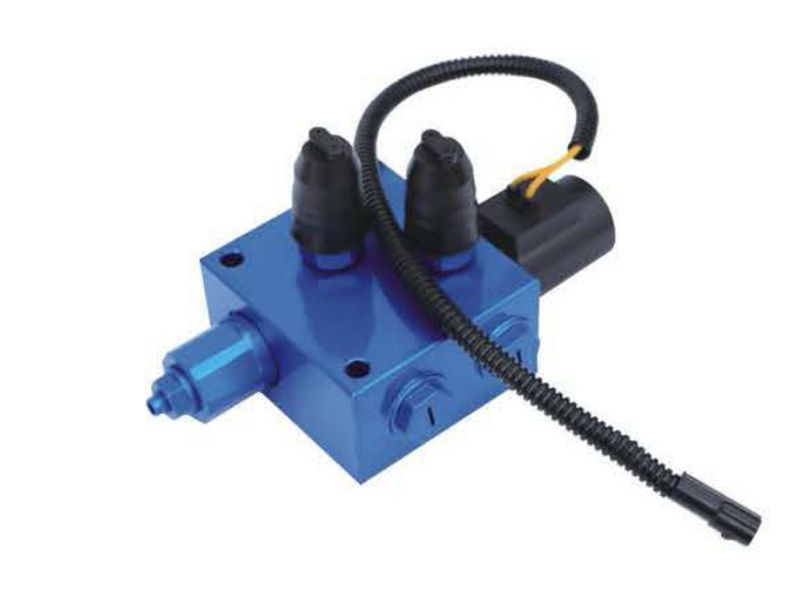

PDF11-00 Brake Valve
The brake valve is designed with a built-in pressure-reducing valve. The equipped 3-way, 2 position solenoid valve is used for the flow control of hydraulic oil and fluid to realize electrically-controlled braking.
Parameters
| Oil input pressure | 20MPa |
| Solenoid valve voltage | DC24V |
| Oil return pressure | ≤0.5MPa |
| Viscosity range | 10-380 mm²/s |
| Oil temperature range | -20℃--100℃ |
| Oil cleanliness | No less than Level GB/T 14039-2002 19/16 or Level NAS 1638 10 |
| Mass | 3.8Kg |

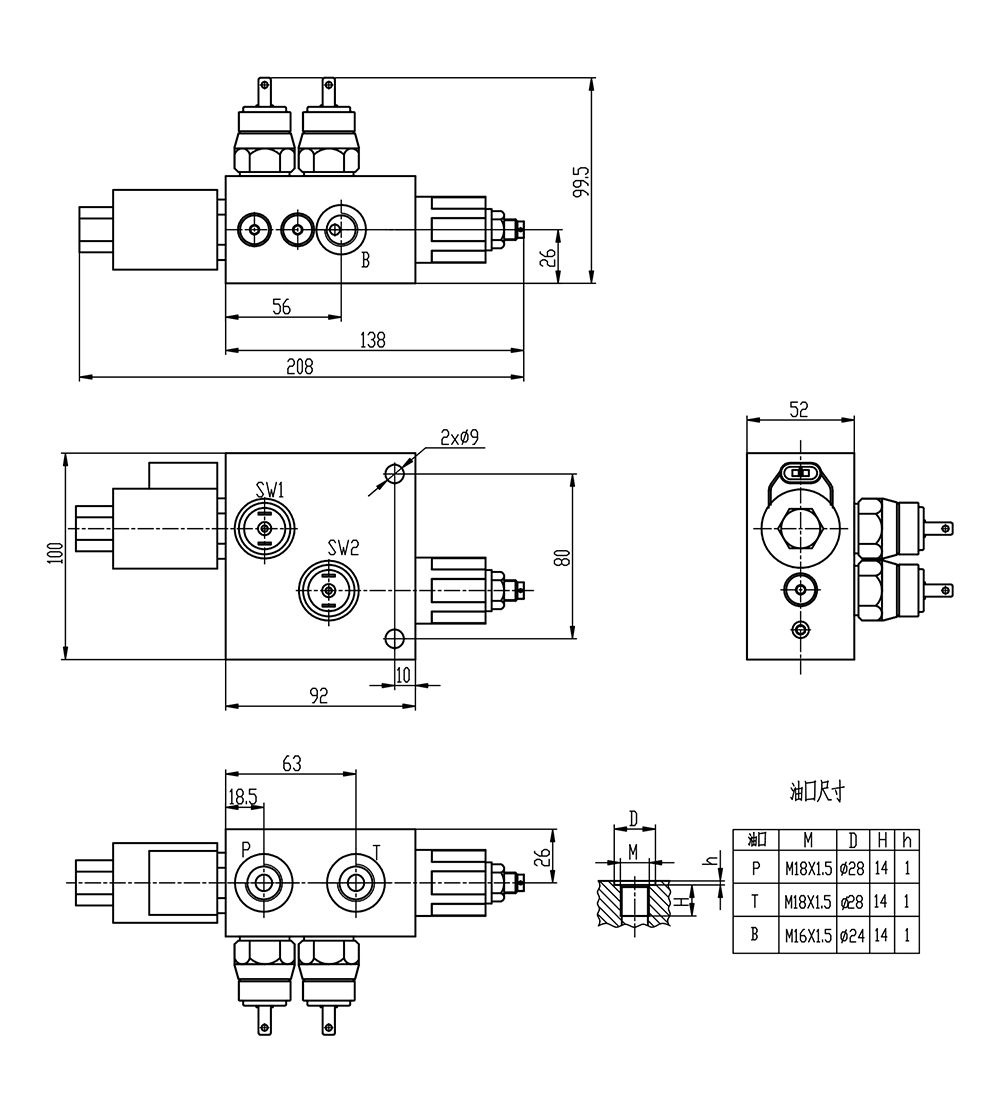

Contour Connection Size

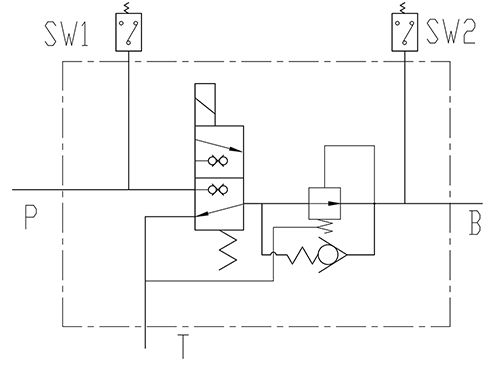

Hydraulic system schematic
