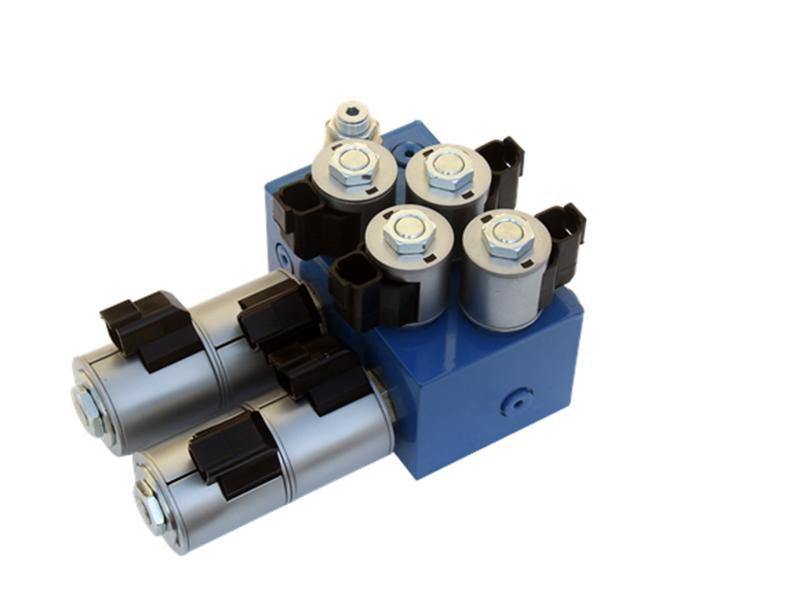

CLSD354.58B.01 Hitch Control Valve
- Double-acting hitch control valve allows desired flow rates regardless of the load imposed on the hitch arms.
- Control valve has low leakage ports.
- Valve module provides proportional control of mobile machinery.
- Hydraulic valve is highly integrated, featuring easy installation and maintenance.
Applications
- Agricultural machine
- Injection molding equipment
Parameters
| Nominal pressure (MPa) | 25 |
| Nominal flow (L/min) | 22 |
| Maximum flow (L/min) | 40 |
| Solenoid valve working voltage | 12VCD±15% |
| 24VCD±15% | |
| Hydraulic oil | Mineral oil (HL, HLP) in accordance with DIN 51 524 |
| Fluid temperature range (℃) | -20-100 |
| Viscosity range (mm2/s) | 10-380 |
| Fluid cleanliness | Not lower than GB/T 14039-93 level 19/16 or NAS 1638 level 10 |
| Weight (kg) | 8 |
