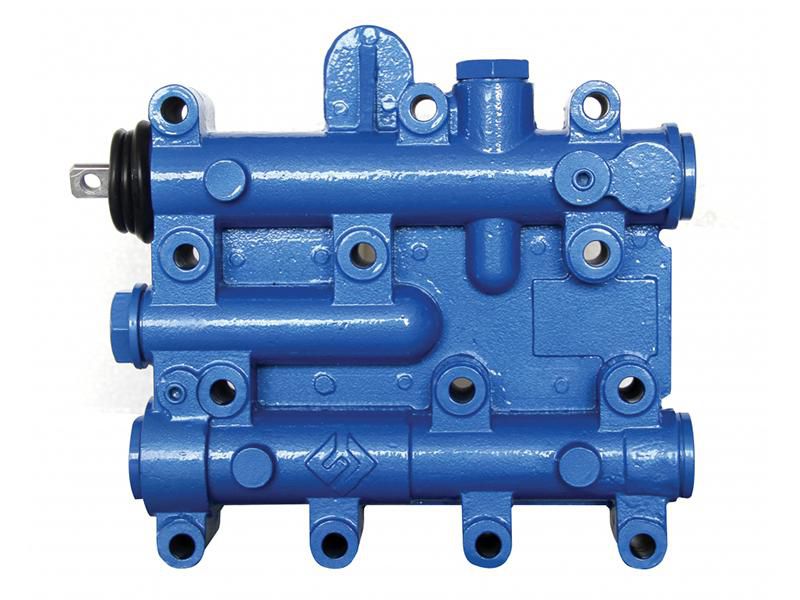

ZL50.6.18 Manual Transmission Valve Body
- New type of accumulator allows friction clutch to connect two shafts quickly, thus reducing shift shock.
- Manual transmission valve body is a mechanically operated monoblock valve and requires low actuation force.
- Brake valve is safe and simple to operate, available in three types of configurations.
- Control valve has two forward gears, one reverse gear and one neutral gear.
- Transmission valve features high reliability, stable gear pressure, wide application and simple maintenance.
- The reversing alarm can be equipped upon request.
- A neutral safety switch can be added to hydraulic valve in case the car starts in gear.
Applications
- Loader
- Material handling machinery
Parameters
| Nominal flow (L/min) | 120 |
| Gear pressure (MPa) | 1.2～1.5 |
| Pressure difference of each gear (MPa) | ≤0.1 |
| Pressure swing (MPa) | ≤±0.1 |
| Actuating force (N) | ≤150 |
| Hydraulic oil | Mineral oil (HL, HLP) in accordance with DIN 51 524 |
| Fluid temperature range (℃) | －20～120 |
| Viscosity range (mm2/s) | 10～380 |
| Fluid cleanliness | Not lower than GB/T 14039-93 level 19/16 or NAS 1638 level 10 |
| Weight (kg) | 12.5 |
