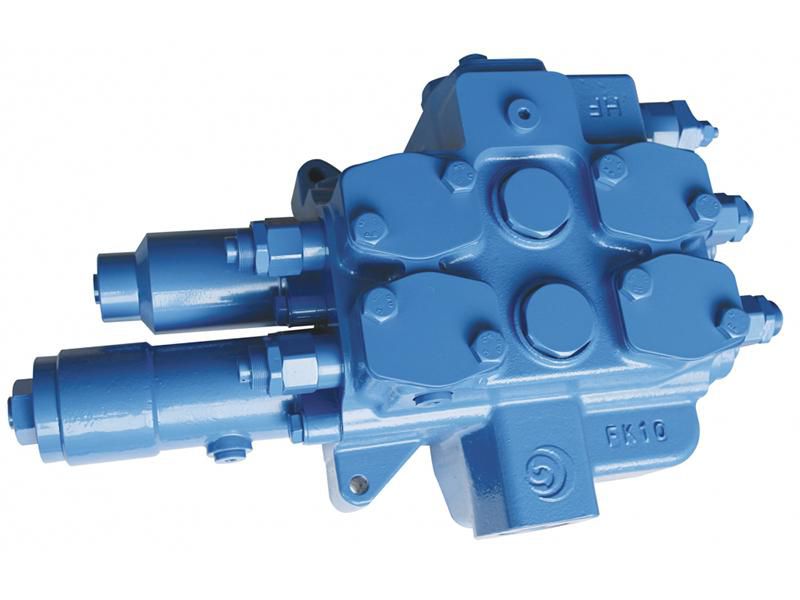

GMV32 Monoblock Directional Control Valve
- Monoblock directional control valve is available in 2 sections or 3 sections.
- Control valve has two ports: inlet and outlet, simplifying piping design and installation.
- Monoblock control valve comes in four positions to allow the cylinder to float and high operating pressure to prevent misoperation.
- Directional control valve controls the fluid flow and has excellent flow characteristics.
- Hydraulic valve is equipped with preload valve and regenerative valve to save energy and prevent cavitation.
- Monoblock control valve is equipped with safety valve, overload valve and check valve, suitable for a wide range of applications, easy maintenance.
Applications
- Loader
- Bulldozer
- Agricultural machinery
- Material handling machinery
- Compactor
- Forestry machinery
- Container crane
Parameters
| Rated pressure (MPa) | 25 |
| Rated flow (L/min) | 350 (maximum flow: 420 L/min) |
| Pressure range of main overflow valve (MPa) | 10-25 |
| Pressure range of secondary overflow valve (MPa) | 15-31.5 |
| Hydraulic oil | Mineral oil (HL, HLP) in accordance with DIN 51 524 |
| Fluid temperature range (℃) | -20-100 |
| Viscosity range (mm2/s) | 10-380 |
| Fluid cleanliness | Not lower than GB/T 14039-93 level 19/16 or NAS 1638 level 10 |
| Weight (kg) | 50 |
