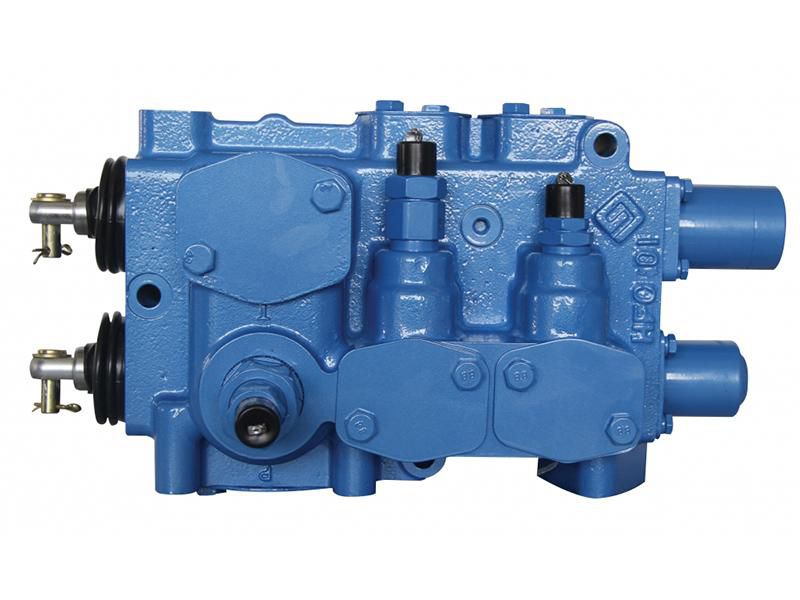

SD32 Monoblock Directional Control Valve
- Monoblock directional control valve is available in 2 sections or 3 sections.
- Monoblock control valve is mechanically operated, low actuation force.
- Spool with smoothly polished surfaces enables precise control of fluid flow.
- Directional control valve has excellent flow characteristics, thus allowing high flow rates.
- Hydraulic valve is equipped with safety valve, overload valve and charging valve, suitable for a wide range of applications, easy maintenance.
- Loop type: serial-parallel connection, parallel connection.
- Spool function: 3 positions, 4 positions.
- Location mode: stainless steel ball spring plunger.
Applications
- Wheel loader
- Bulldozer
- Agricultural machinery
- Material handling machinery
Parameters
| Rated pressure (MPa) | 25 |
| Rated flow (L/min) | 350 (maximum flow: 415 L/min) |
| Pressure range of main overflow valve (MPa) | 10-25 |
| Pressure range of secondary overflow valve (MPa) | 15-31.5 |
| Actuating force (N) | ≤320 |
| Hydraulic oil | Mineral oil (HL, HLP) in accordance with DIN 51 524 |
| Fluid temperature range (℃) | -20-100 |
| Viscosity range (mm2/s) | 10-380 |
