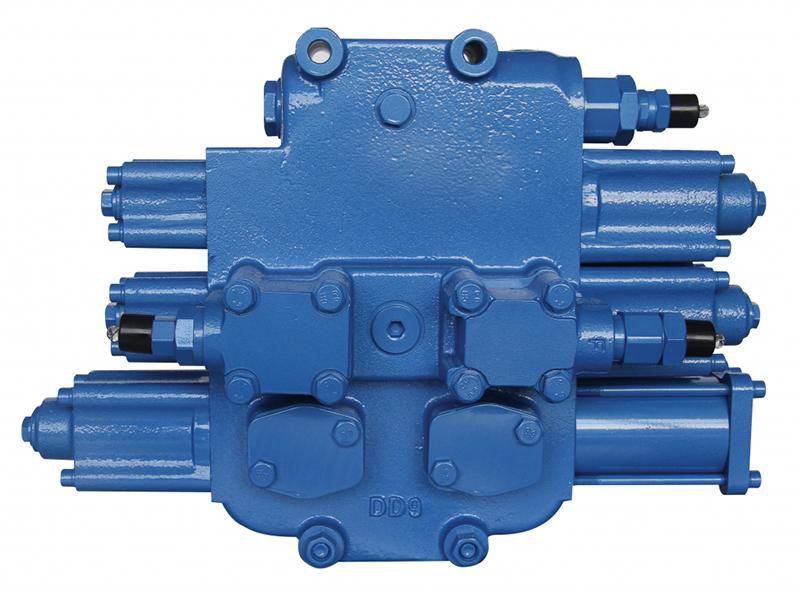

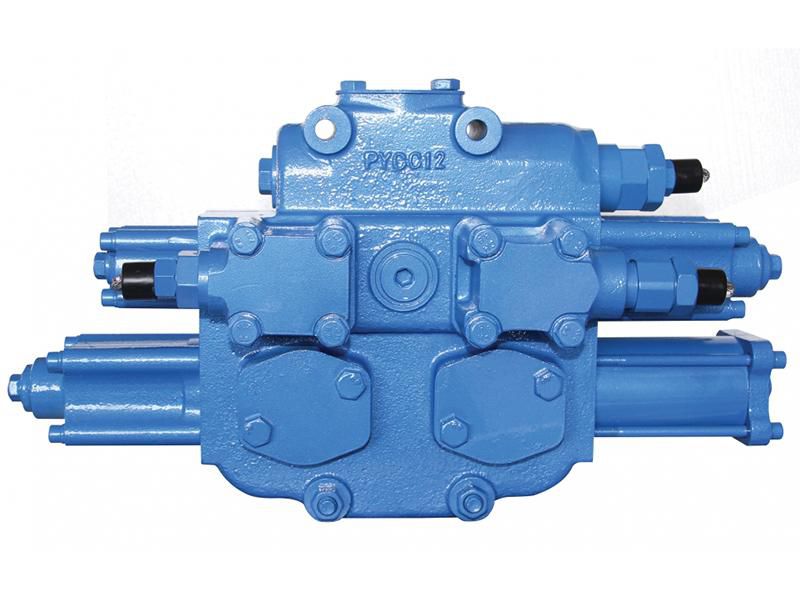

YGDF-25/32 Monoblock Directional Control Valve
- Monoblock directional control valve is available in 2 sections or 3 sections.
- Directional control valve controls the fluid flow and has excellent flow characteristics.
- Designed with proportional pilot control, monoblock control valve requires low operating force.
- Hydraulic valve is equipped with safety valve, overload valve and charge valve, suitable for a wide range of applications, easy maintenance.
- Loop type: serial-parallel connection, parallel connection.
- Spool function: 3 positions, 4 positions.
Applications
- Loader
- Bulldozer
- Agricultural machinery
- Material handling machinery
Parameters
| | | ||
| Rated pressure (MPa) | 20 | 20 | |
| Rated flow (L/min) | 250 (maximum flow: 350L/min) | 160 (maximum flow: 350L/min) | |
| Pressure range of main overflow valve (MPa) | 8-20 | 8-20 | |
| Pressure range of secondary overflow valve (MPa) | 10-25 | 10-25 | |
| Hydraulic oil | Mineral oil (HL, HLP) in accordance with DIN 51 524 | ||
| Fluid temperature range (℃) | －20-100 | ||
| Viscosity range (mm2/s) | 10-380 | ||
| Fluid cleanliness | Not lower than GB/T 14039-93 level 19/16 or NAS 1638 level 10 | ||
| Weight (Kg) | 44 (2 sections) | 51 (3 sections) | |
