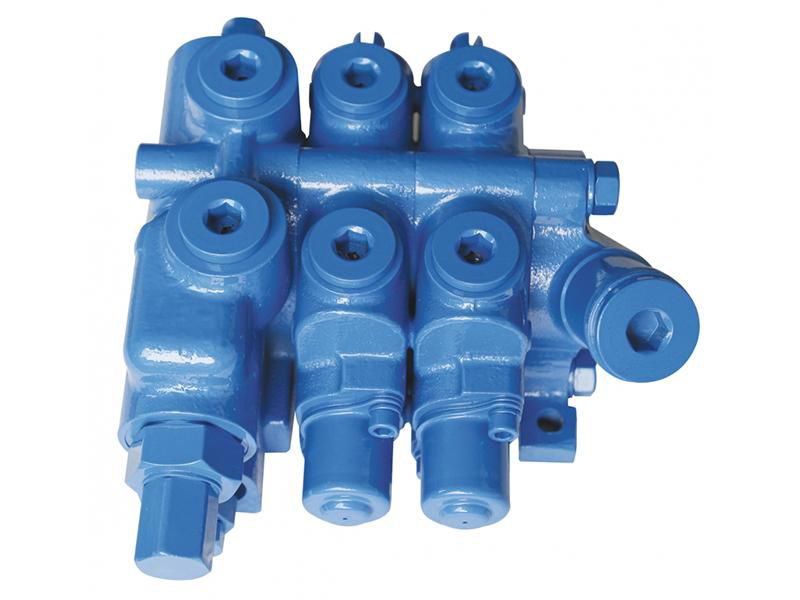

GFV15 Sectional Directional Control Valve
- Sectional directional control valve is available from 1 to 10 sections.
- Sectional control valve is compact designed, simplifying piping design and installation.
- Integrated inlet section supplies constant fluid flow to steering system.
- Control valve is equipped with a brake valve for operational safety.
- Spool with smoothly polished surfaces enables precise control of fluid flow.
- Control valve can be equipped with overload valve or charge valve.
- Loop type: parallel circuit, series-parallel circuit or dual circuit.
Applications
- 1-3 tons forklifts
- Agricultural tractor auxiliary function
- Material handling machinery
- Small sized loader, excavator
Parameters
| Rated pressure (MPa) | 25 |
| Rated flow (L/min) | 65 (maximum flow: 75 L/min) |
| Pressure range of main safety valve (MPa) | 10-25 |
| Flow rate (L/min) | 11-14 |
| Pressure range of steering relief valve (MPa) | 8-20 |
| Actuating force (N) | 140 |
| Hydraulic oil | Mineral oil (HL, HLP) in accordance with DIN 51 524 |
| Fluid temperature range (℃) | －20-100 |
| Viscosity range (mm2/s) | 10-380 |
| Fluid cleanliness | Not lower than GB/T 14039-2002 level 19/16 or NAS 1638 level 10 |
| Weight (kg) | 9.5 |
