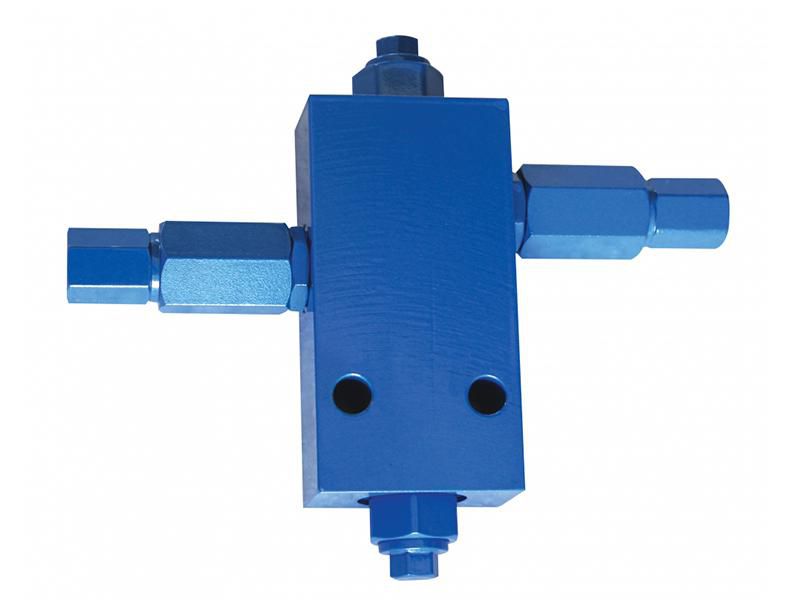

SF8 Pressure Selector Valve
- Pressure selector valve is lightweight and compact, easy to install.
- Selector valve is leakage free.
- stack valve can be mounted to other devices in various ways.
- Decompression pressure can be set according to your requirements.
Applications
- Loader
- Bulldozer
- Hoisting machinery
- Agricultural machinery
Parameters
| Pilot pressure (MPa) | 5 |
| Rated flow (L/min) | 20 |
| Decompression pressure (MPa) | 3.2 |
| Hydraulic fluid | Mineral oil (HL, HLP) in accordance with DIN 51 524 |
| Fluid temperature range (℃) | －20-80 |
| Viscosity range (mm2/s) | 10-380 |
| Fluid cleanliness | Not lower than NAS 1638 level 9 |
| Weight (kg) | 2.6 |
