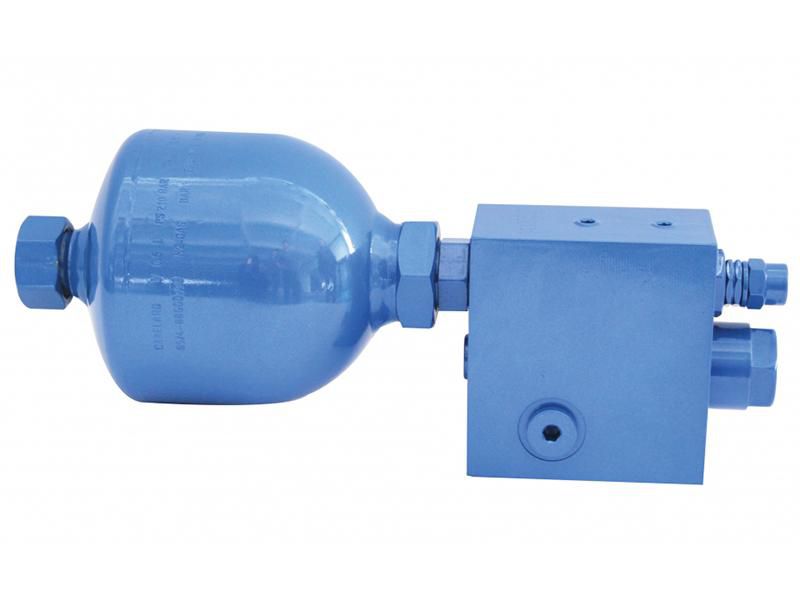

DGF Feeding Unit
- Pilot valve supply unit is small and compact, simple to install.
- Feeding unit is able to divert flow directly in steering systems and working hydraulic systems at low pressure drop, which is a good substitute for pilot pump.
- Instantaneous flow rate up to 40 L/min, stable output pressure, long holding time.
- Pilot valve can be integrated with solenoid valve according to usage.
Applications
- Loader
- Bulldozer
- Hoisting machinery
- Agricultural machinery
- Material handling machinery
Parameters
| Input pressure (MPa) | Maximum 25 |
| Output pressure (MPa) | 3.2 |
| Unloading pressure (MPa) | 4.5 |
| Rated flow (L/min) | 16 |
| Hydraulic oil | Mineral oil (HL, HLP) in accordance with DIN 51 524 |
| Fluid temperature range (℃) | －20-80 |
| Viscosity range (mm2/s) | 10-380 |
| Fluid cleanliness | Not lower than NAS 1638 level 9 |
| Weight (kg) | 5.6 |
