4FV08 Foot Pedal Pilot Control Valve
- Foot pedal pilot control valves feature a compact structure that simplifies the installation process, making it an efficient choice for various machinery
- Operated by foot, these control valves offer sensitive control and can be used in conjunction with pilot valve handles for combined hand-foot operation, enhancing the operator's control over the machinery
- They ensure a steady output of control pressure, facilitating smooth and predictable operations
- Customization of the pressure characteristics curve is available to satisfy requirements of multi-way directional control valves, offering versatility in application
Applications
- Material handling equipment
- Cranes
- Agricultural machinery
- Forestry equipment
- Container lifting equipment
- Drilling rigs
- Trash compactors
Parameters
| Nominal pressure (MPa) | 5 |
| Nominal flow (L/min) | 16 |
| Opening pressure(MPa) | 0.5 |
| Hydraulic oil | Mineral oil (HL, HLP) in accordance with DIN 51 524 |
| Fluid temperature range (℃) | －20～100 |
| Viscosity range (mm2/s) | 10～380 |
| Fluid cleanliness | Not lower than GB/T 14039-93 level 19/16 or NAS 1638 level 10 |
| Weight (kg) | 12 |

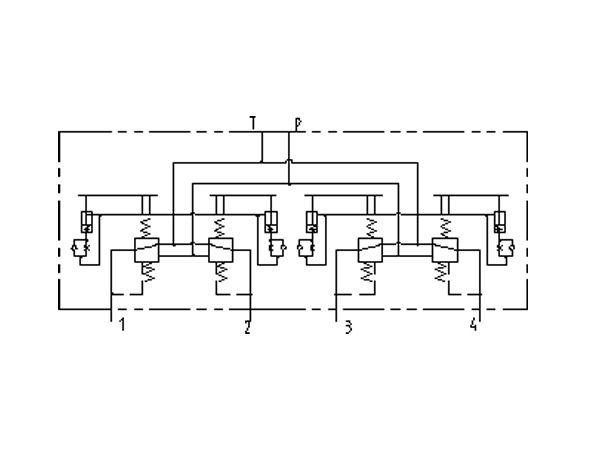

Hydraulic System Schematic Diagram

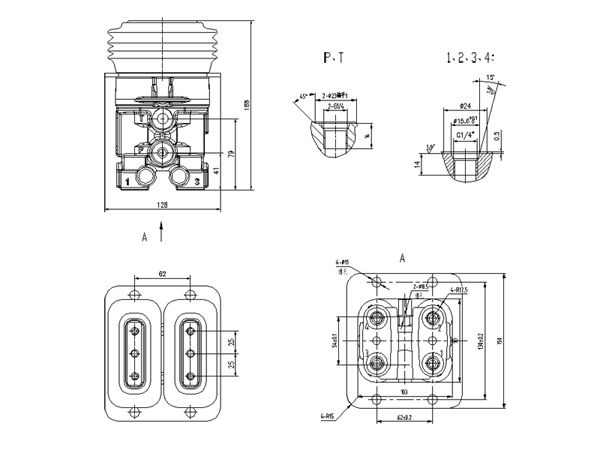

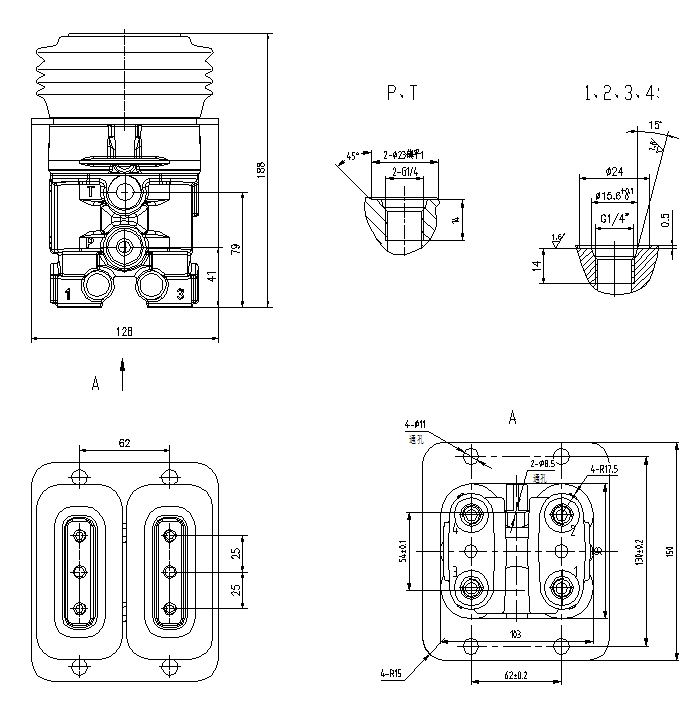

Installation Connection Dimension
